Meter type fast twist fitting
PE Type Quick Twist Connector Nickel Plated Brass Tee Pneumatic Fittings
Nickel Plated Copper Quick Screw Connector Pneumatic Air Fitting Straight Joint Locking Nut PC4 PC6 PC8 PC10 PC12C10 PC12
Specifications
- Working medium
- Compressed air
- Material
- Copper
- Surface treatment
- Nickel plated
- Operating pressure
- 0-1.0Mpa
- Working Temperature
- 0-60 degree

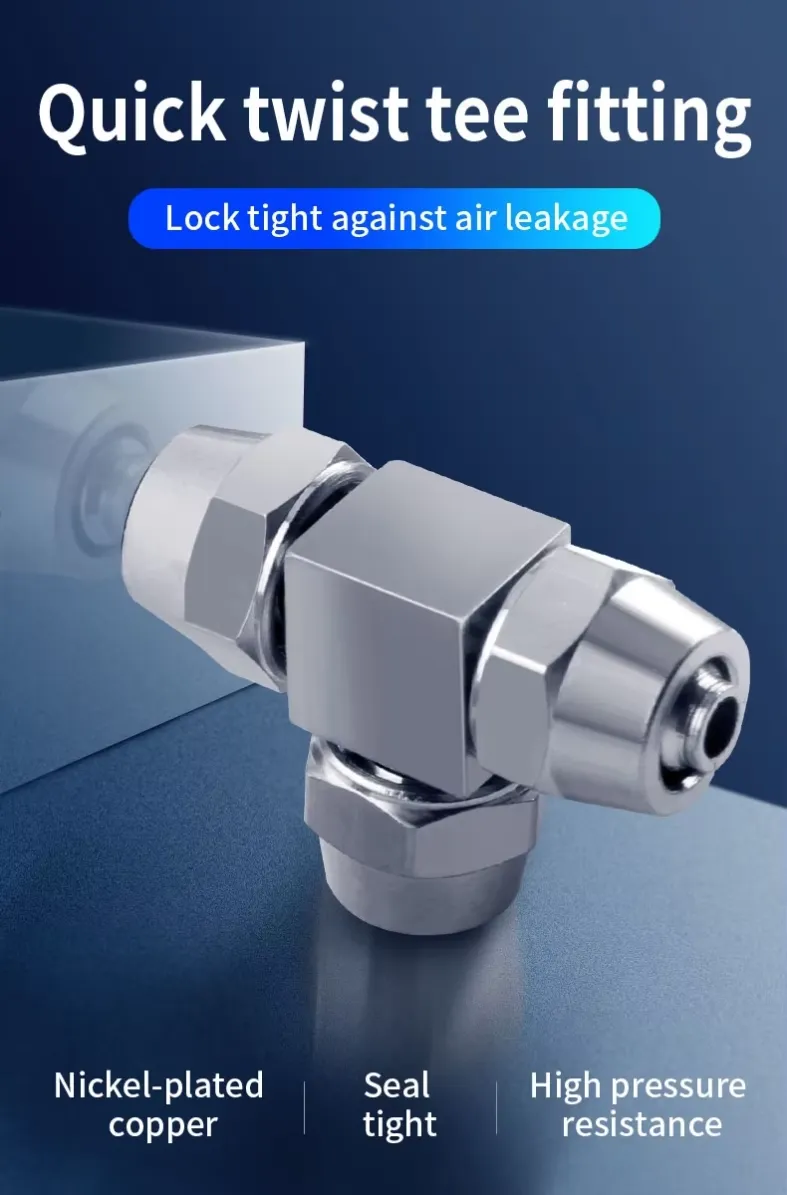

PE All-Brass Equal Tee Pneumatic Compression Fitting
The PE Series is an all-brass equal tee compression fitting designed to connect three pneumatic tubes of the same size. Its T-shaped configuration provides a compact and reliable solution for dividing one compressed-air line into two branches or combining two lines into a single circuit.
PE Series is available for metric pneumatic tubing from 4 mm to 16 mm outside diameter.
Key Features

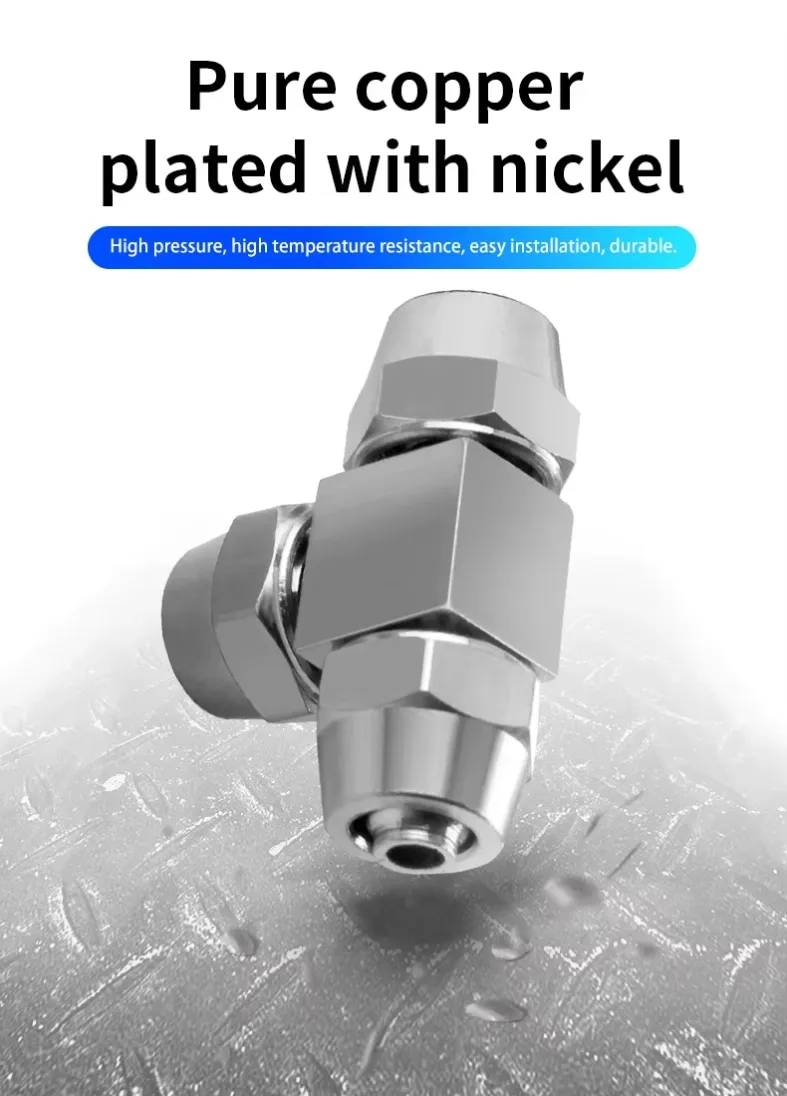

All-Brass Construction
The fitting body and external connection components are manufactured from brass, providing high mechanical strength, dimensional stability and long service life in industrial pneumatic applications.
Three Equal Tube Ports
All three ports accept the same tube size. This equal tee configuration is suitable for creating a branch in a pneumatic circuit without changing the nominal tube diameter.

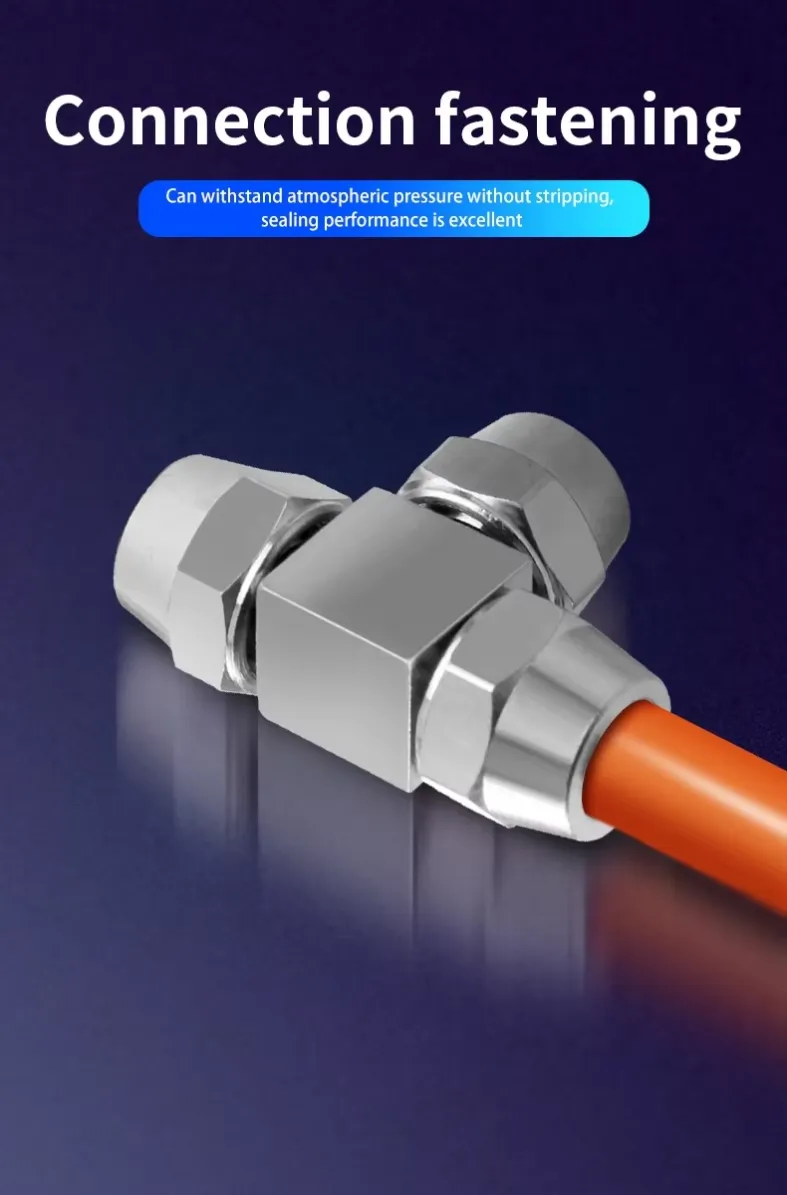

Secure Compression Connection
Each port uses a screw-tightened compression nut. The mechanical locking structure helps hold the tube securely and reduces the risk of accidental disconnection.
Corrosion-Resistant Metallic Finish
The silver-colored exterior provides a clean industrial appearance and helps protect the brass surface against oxidation and normal environmental exposure.
Product Specifications
Item | Specification |
Product series | PE |
Fitting type | Equal tee compression fitting |
Configuration | Three-way tube-to-tube connection |
Body material | Brass |
Exterior | Silver-colored corrosion-resistant metallic finish |
Connection method | Screw-tightened compression connection |
Number of ports | Three equal tube ports |
Tube range | 4–16 mm outside diameter |
Thread connection | None |
Standard tube system | Metric |
Recommended medium | Compressed air |
Working pressure | Confirm according to the tubing and application |
Operating temperature | Confirm with the supplier before ordering |
Sealing materials | Confirm according to the selected product version |
