Air Source Treatment

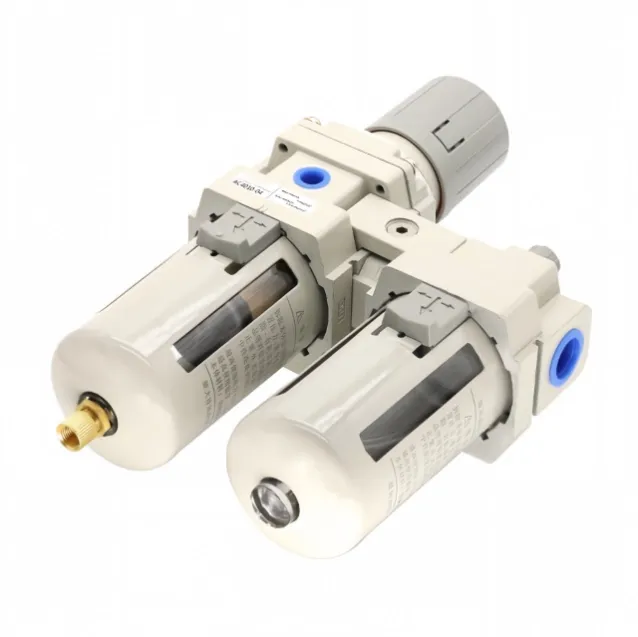

AC3010-03 Air filter regulator
AC Series Air Filter Regulator
Specifications
- Proof Pressure
- 1.5Mpa
- Max Operation Pressure
- 1.0Mpa
- Filter Precision
- 40um
- Bowl Material
- PC
AC Series FRL Combination
The AC Series FRL Combination is a modular compressed-air preparation unit consisting of an AW Series filter regulator and an AL Series lubricator.
Unlike a conventional three-module FRL assembly, the AC Series uses an integrated filter-regulator module to combine filtration and pressure regulation in one body. This compact design reduces the overall installation width while still providing the three essential air-treatment functions:
- Removal of solid contamination and condensed moisture
- Regulation of downstream air pressure
- Controlled lubrication of pneumatic equipment
The series includes AC1010, AC2010, AC3010, AC4010, and AC5010 body sizes. Port options range from M5 to 1 inch, while maximum flow capacities range from 90 to 4,000 L/min.
It is suitable for pneumatic machinery, automation equipment, production lines, packaging systems, textile machines, assembly equipment, air tools, and other industrial applications requiring clean, regulated, and lubricated compressed air.
Product Configuration
The complete AC Series unit combines two modular components:
AC Series | Filter-Regulator Module | Lubricator Module |
AC1010 | AW1000 | AL1000 |
AC2010 | AW2000 | AL2000 |
AC3010 | AW3000 | AL3000 |
AC4010 | AW4000 | AL4000 |
AC5010 | AW5000 | AL5000 |
The compressed-air flow sequence is:
Air Inlet → AW Filter Regulator → AL Lubricator → Air Outlet
The AW module filters the compressed air and maintains the selected downstream pressure. The AL module then introduces a controlled quantity of lubricating oil into the airflow when downstream equipment requires lubrication.
Key Features
- Integrated filtration, regulation, and lubrication
- Compact two-module FRL construction
- AC1010 to AC5010 body sizes
- Port sizes from M5 × 0.8 to 1 inch
- Maximum flow rates from 90 to 4,000 L/min
- Proof pressure of 1.5 MPa
- Maximum operating pressure of 1.0 MPa
- Standard 40 μm filtration
- Adjustable downstream pressure
- Integrated pressure gauge
- Semi-automatic and automatic drain options
- Transparent polycarbonate bowls
- Protective bowl covers on AC3010-AC5010 models
- ISO VG32 lubricating oil compatibility
- Modular construction for easier installation and maintenance
- Suitable for individual machines and industrial air-treatment systems
Technical Specifications
Item | Specification |
Product type | Filter-regulator and lubricator combination |
Series | AC1010, AC2010, AC3010, AC4010, AC5010 |
Working medium | Compressed air |
Proof pressure | 1.5 MPa / 15 bar / 217.5 psi |
Maximum operating pressure | 1.0 MPa / 10 bar / 145 psi |
Ambient temperature | -5°C to 60°C, non-freezing |
Filter precision | 40 μm |
Recommended lubricating oil | Turbine Oil No. 1, ISO VG32 |
Bowl material | Polycarbonate |
Drain options | Semi-automatic or automatic |
Port range | M5 × 0.8, 1/4", 3/8", 1/2", 3/4", and 1" |
Maximum flow range | 90-4,000 L/min |
Pressure-gauge ports | 1/16", 1/8", or 1/4", depending on model |
Bowl cover | AC1010-AC2010: without cover; AC3010-AC5010: with cover |
The listed maximum flow rates are catalogue values. Actual airflow depends on inlet pressure, outlet pressure, permitted pressure drop, tubing size, air quality, and operating conditions.
Pressure Regulation Range
Series | Adjustable Pressure Range |
AC1010 | 0.05-0.70 MPa / 7.25-101.5 psi |
AC2010-AC5010 | 0.05-0.85 MPa / 7.25-123 psi |
The regulator should be adjusted according to the pressure requirements of the downstream valves, cylinders, air tools, and pneumatic equipment.
Available Models
Manual Drain Model | Automatic Drain Model | Components | Maximum Flow | Main Port | Gauge Port |
AC1010-M5 | AC1010-M5D | AW1000 + AL1000 | 90 L/min | M5 × 0.8 | 1/16" |
AC2010-02 | AC2010-02D | AW2000 + AL2000 | 500 L/min | 1/4" | 1/8" |
AC3010-02 | AC3010-02D | AW3000 + AL3000 | 1,700 L/min | 1/4" | 1/8" |
AC3010-03 | AC3010-03D | AW3000 + AL3000 | 1,700 L/min | 3/8" | 1/8" |
AC4010-03 | AC4010-03D | AW4000 + AL4000 | 3,000 L/min | 3/8" | 1/8" |
AC4010-04 | AC4010-04D | AW4000 + AL4000 | 3,000 L/min | 1/2" | 1/4" |
AC4010-06 | AC4010-06D | AW4000 + AL4000 | 3,000 L/min | 3/4" | 1/4" |
AC5010-06 | AC5010-06D | AW5000 + AL5000 | 4,000 L/min | 3/4" | 1/4" |
AC5010-10 | AC5010-10D | AW5000 + AL5000 | 4,000 L/min | 1" | 1/4" |
Main Product Advantages
Compact Two-Module Design
The AW Series integrates the air filter and pressure regulator into a single body. Combined with the AL lubricator, the complete unit performs three air-treatment functions using only two modules.
This design offers:
- Reduced installation width
- Fewer connecting parts
- Simpler mounting
- Fewer possible leakage points
- Cleaner machine layout
- Easier maintenance
Complete Compressed-Air Preparation
The unit helps prepare compressed air before it reaches downstream equipment:
- The filter captures solid contamination and separates condensed moisture.
- The regulator reduces and stabilizes downstream pressure.
- The lubricator introduces controlled oil mist when lubrication is required.
This coordinated process can help improve pneumatic-system reliability and reduce premature component wear.
Wide Range of Sizes
The AC1010-AC5010 range supports both miniature equipment and larger industrial machinery. Customers can select a model according to the required port size, flow demand, and installation space.
Visible Pressure and Bowl Condition
The pressure gauge provides a clear indication of the regulated outlet pressure.
Transparent filter and lubricator bowls make it easier to inspect:
- Accumulated condensate
- Filter contamination
- Lubricating-oil level
- Abnormal operating conditions
Flexible Drain Selection
Two drainage configurations are available:
- No suffix: semi-automatic drain
- D suffix: automatic drain
Automatic drainage is useful when moisture accumulates frequently, the machine operates continuously, or the FRL unit is installed in a position where regular manual drainage is inconvenient.
Protective Covers on Larger Models
AC3010, AC4010, and AC5010 units include protective bowl covers. These covers help shield the polycarbonate bowls against impact in industrial environments.
AC1010 and AC2010 models are supplied without bowl covers.
